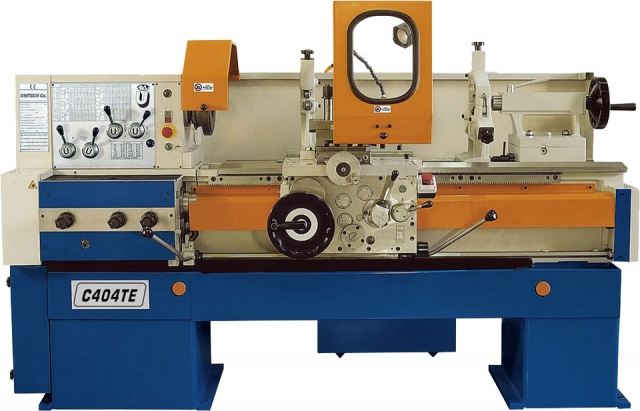

C404TE
Technical specification of C404TE
| Technical data | Dim. | Value |
|---|---|---|
| Height of centers | mm | 200 |
| Swing diameter over bed | mm | 415 |
| Swing diameter over carriage | mm | 240 |
| Swing diameter over gap in bed | mm | 560 |
| Width of ways | mm | 320 |
| Distance between centers | mm | 1000, 1500, 2000 |
| Bar material | mm | 50 |
| Spindle | ||
| Spindle nose DIN 55027 | № | 6 |
| Spindle nose taper | mm | 52 |
| Spindle bore | KM | 6 |
| Front bearing diameter | mm | 80 |
| Feed | ||
| Feed quantity | pcs. | 56 |
| Longitudinal feed range | mm/rev | 0,07 - 1,05 |
| Transverse feed range | mm/rev | 0,028 - 0,43 |
| Toolpost | ||
| Toolpost shank size | mm | 20x20 |
| Threads | ||
| Thread quantity | pcs. | 40 |
| Metric | mm | 0,5-7,5 |
| Imperial | vit / inch | 0,5-60 |
| Module | M | 0,125-15 |
| Diameter | vit / inch | 2-240 |
| Carriage | ||
| Cross slide stroke | mm | 255 |
| Top slide stroke | mm | 130 |
| Tailstock | ||
| Tailstock diameter | mm | 60 |
| Tailstock taper | KM | 4 |
| Tailstock travel | mm | 140 |
| Motor | ||
| Number of gears of main motor | pcs. | 12 |
| Range of motor revolutions | rev / min | 45-2000 |
| Motor power | kW | 4 |
| Rapid traverse motor power | kW | 0.55 |
| Coolant pump motor power | kW | 0.18 |
| Weight | ||
| For DBC 1000 | kg. | 1505 |
| For DBC 1500 | kg. | 1595 |
| For DBC 2000 | kg. | 1875 |
| Size | ||
| Length for DBC 1000, 1500, 2000 | mm | 2250, 2750, 3250 |
| Width | mm | 990 |
| Height | mm | 1350 |
Standard equipment
Main Motor 4KW, Electrical equipment, Coolant system with pump, Lighting, Rapid traverse, Monolith bed, Gap bed, 200mm flange, Back cover plate along bed, 3 jaw chuck cover plate, Toolpost cover plate, Set of belts, spare cogwheel, Bolts and fittings for leveling, spindle dead center, Reduction sleeve for spindle, 4 positional toolpost, Fast-screwing tailpost, Reductor for tailpost ram, Single point trailing stop, Case for accessories, Polyethilene covered pallet packing, Users manual, Dead center MK4
