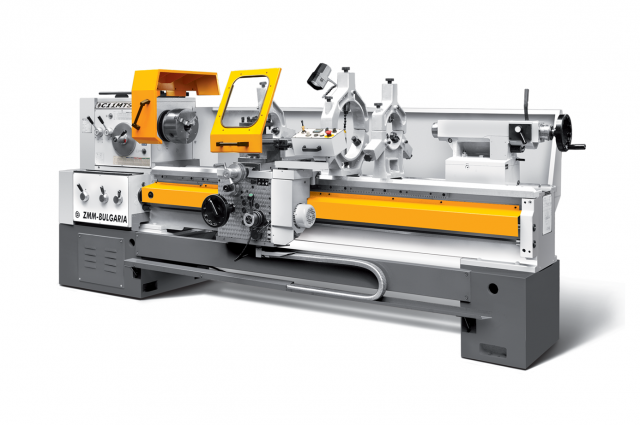

C11MTS
Manufacturer:
ZMM Bulgaria Holding Jsc.
Technical specification of C11MTS
|
Technical data |
Dim. |
Value |
|
|
|
|
|
Height of centers |
mm |
300 |
|
Swing over bed |
mm |
600 |
|
Swing over cross slide |
mm |
400 |
|
Swing in gap |
mm |
800 |
|
Width of bed |
mm |
400 |
|
Distance between centers |
mm |
1000; 1500; 2000; 3000; 4000; 5000 |
|
Spindle |
||
|
Spindle nose DIN 55027 |
№ |
8 |
|
Spindle bore |
mm |
80 |
|
Spindle taper |
Metric |
90 |
|
Feeds |
||
|
Number of feeds |
|
160 |
|
Longitudinal feed range |
mm/rev |
0.02-12 |
|
Cross feed range |
mm/rev |
0.01-6 |
|
Threads |
||
|
Number of threads |
|
80 |
|
Metric thread range |
mm |
0.25-120 |
| Inch thread range | Tpi | 120 - ¼ |
| Module thread range | Module | 0.0625-30 |
| DP thread range | DP | 480-1 |
|
Carriage |
||
|
Cross slide travel |
mm |
315 |
|
Top slide travel |
mm |
130 |
|
Tailstock |
||
|
Quill diameter |
mm | 90 |
|
Quill taper |
Morse | № 5 |
|
Quill travel |
mm | 230 |
|
Motor |
||
| Number of gears of main motor | Infinitely variable in 3 sub-ranges | |
| Range of motor revolutions | rpm | 8-62; 62-500; 250-2000 |
| Main motor power | kW | 11 |
| Weight | ||
| For DBC 2000 | kg | 3100 |
Standard equipment
Main Motor 11 KW with frequency inverter Schneider 400V, 3-phase 50/60 Hz, Electrical equipment, Cooling system with pump, Rapid traverse, Gap in bed, Monolith bed, 250mm. flange, Back cover along lathe, Chuck cover plate, Toolpost cover, Cog-belt system, Set of belts, Spare cogwheel, Bolts and fittings for leveling, Spindle dead center, Reduction sleeve for spindle, 4-positional toolpost, Fast-screwing tailpost, Reductor for tailpost ram, Case for accessories, Wooden pallet with polyethylene cover packaging, Users manual.
Optional acceessory
3-JAW selfcentering chuck, Independent 4-JAW chuck, Face plate, Followe rest, Steady rest (small size), Steady rest (big size), Taper turning attachm., One-position long. stop, Thread dial, Drive plate for spindle nose DIN 55027, Set of lathe dogs, Live center, Drill chuck with arbor.
