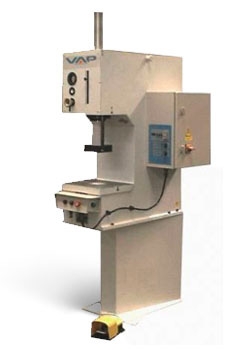

PH 800
Manufacturer:
VAPTECH
Technical specification of PH 800
| Technical data | Dim. | Value |
|---|---|---|
| Maximum effort | kN | 800 |
| Motor power | kW | 3 |
| Move of the slide | mm | 200 |
| Pit depth | mm | 170 |
| Table size – width | mm | 320 |
| Table size – length | mm | 360 |
| Oтвepcтиe cтoлa | - | F120H7 |
| Slide size – width | mm | 140 |
| Slide size – length | mm | 140 |
| Hole of the slider | mm | F25H7 |
| Height from floor to work table | mm | 940 |
| Size – width | mm | 580 |
| Size – height | mm | 2290 |
| Voltage | V | 400 |
| Frequency | Hz | 50 |
| Phases | - | 3 |
| Weight | kg | 530 |
Main characteristics:
Mechanical stroke limitation is monitored with a micrometer screw and nuts
Precision positioning of the slider to the lowest position in the course of from 0 to 200 mm;
Precision stroke setting 0.1 mm;
Stepless regulation compression force of 10 to 80 kN;
