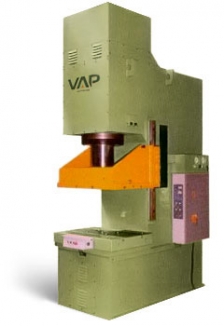

PH 2000
Manufacturer:
VAPTECH
Technical specification of PH 2000
| Technical data | Dim. | Value |
|---|---|---|
| Nominal force | kN | 2000 |
| Motor power | kW | 30 |
| Pit depth | mm | 370 |
| Move of the slide | mm | 600 |
| work stroke speed | mm / sec | 9 |
| high speed | mm / sec | 300 |
| Return stroke speed | mm / sec | 300 |
| Table size – width | mm | 700 |
| Table size – length | mm | 1400 |
| Slide size – width | mm | 600 |
| Slide size – length | mm | 1100 |
| Hole of the slider | mm | F50H7 |
| Height from floor to work table | mm | 900 |
| Height from work table to slide | mm | 800 |
| Voltage | V | 400 |
| Frequency | Hz | 50 |
| Phases | - | 3 |
Main characteristics:
Frame - welded construction
Operating modes: - adjustment - manual stroke - single stroke - Automatic mode
Controls: - two-handed - via the remote pedal;
Options: device for deep-drawing: - force - 400 kN - stroke - 200 mm - piston area - 600x450mm
