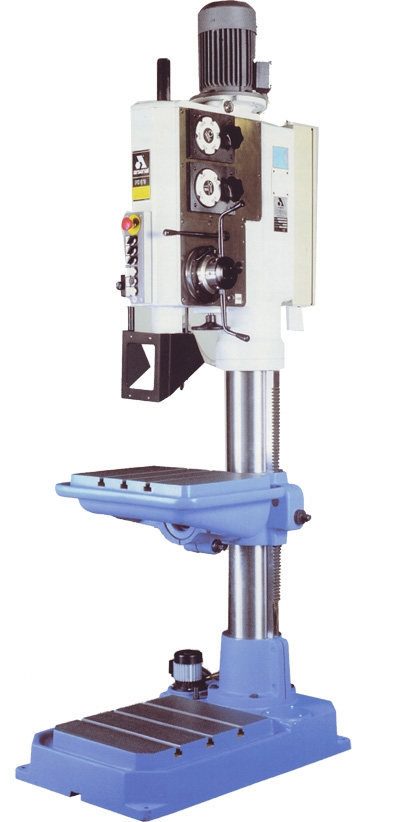

PK 032
Manufacturer:
ZMM Metalik
Technical specification of PK 032
| Technical data | Dim. | Value |
|---|---|---|
| Maximal diameter of drill in steel | mm | 32 |
| Work table size | mm | 400x480 |
| Maximal diameter of drill in cast-iron | mm | 38 |
| Threading in steel | mm | M22 |
| Threading in cast-iron | mm | M30 |
| Spindle nose taper | KM | 3 |
| Spindle travel | mm | 160 |
| Main drive | - | Gear |
| Max rpm of main motor | rpm | 1500 |
| Motor power | kW | 1,1 |
| Number of main motor speed ranges | pcs. | 9 |
| Range of motor revolutions | rpm | 104-155-217- 241-360-505- 700-1050-1470 |
| Feed | mm | Automatic with mechanical or electromagnetic connection |
| Feed quantity | pcs. | 2 |
| Feed rate | mm / rev. | 0,10 - 0,20 |
| Column diameter | mm | 130 |
| Distance from spindle to column | mm | 300 |
| Distance from spindle to table min/max | mm | 80/785 |
| T-slots | pcs. | 3 |
| Width of T-slots | mm | 14 |
| Tilting and rotating desktop | kW | 0-360,+/- 90 |
| Distance from spindle to base | mm | 1280 |
| Size of base work area | mm | 440x425 |
| T-channels - Quantity x width | mm | 2x14 |
| Weight | kg | 405 |
Standard equipment
Drift Morse, Lighting, Cooling system, Automatic feed, Reverse, Spindle protection , Electrical equipment on the CE.
