C10T.14

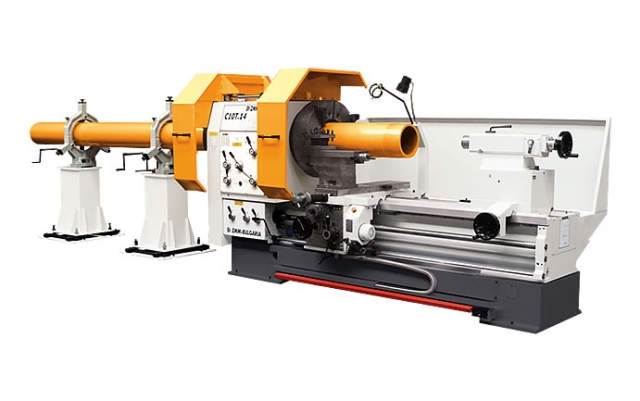

The C10T.14 manual oil country lathe offered by EIM-Trade is a new model heavy duty lathe manufactured in Bulgaria by ZMM Bulgaria Holding - a group of companies with more than 70 years of experience in lathe production. It is suitable for threading large diameter pipes thanks to its 14 inch/358mm spindle bore and 1020mm swing over bed. The lathe is capable of threading in metric, imperial, modular and diameter pitches. It comes in six DBTs ranging from 1500mm to 6000mm. The C10T.14 can be custom-ordered for a specific climate type and with a large variety of additional equipment like big steady rests from 180 to 400mm, 600mm faceplate, 600mm 4-jaw independent chuck, 315mm 3-jaw self-centering chuck, 20mm drill chuck, drive plate, a set of lathe dogs from 20 to 100mm and other optional equipment.
Manufacturer:
ZMM Bulgaria Holding Jsc.
Technical specification of C10T.14
|
Technical data |
Dim. |
Value |
|
|
|
|
|
Height of centers |
mm |
510 |
|
Swing over bed |
mm |
1020 |
|
Swing over cross slide |
mm |
780 |
|
Swing in gap |
mm |
1210 |
|
Width of bed |
mm |
560 |
|
Distance between centers |
mm |
1500; 2000; 3000; 4000; 5000; 6000 |
|
Spindle |
||
|
Spindle nose DIN 55027 |
№ |
A20 |
|
Spindle bore |
mm |
358 |
|
Spindle taper |
Metric |
318 |
|
Feeds |
||
|
Number of feeds |
|
152 |
|
Longitudinal feed range |
mm/rev |
0.039-15 |
|
Cross feed range |
mm/rev |
0.02-7.5 |
|
Threads |
||
|
Number of threads |
|
64 |
|
Metric thread range |
mm |
0.5-150 |
| Inch thread range | Tpi | 60 - 1/5 |
| Module thread range | Module | 0.125-37.5 |
| DP thread range | DP | 240-4/5 |
|
Carriage |
||
|
Cross slide travel |
mm |
510 |
|
Top slide travel |
mm |
280 |
|
Tailstock |
||
|
Quill diameter |
mm | 105 |
|
Quill taper |
Morse | № 6 |
|
Quill travel |
mm | 225 |
|
Motor |
||
| Number of gears of main motor | 12 | |
| Range of motor revolutions | rpm | 6.3-315 |
| Main motor power | kW | 18.5 |
Standard equipment
Main drive motor, Electrical equipment, Cooling system with pump, Lighting, Rapid traverse, Gap in bed, Flange, Full length rear splash guard, 3-jaw chuck splash guard, Toolholder protective screen cover, Set of V-belts, Change gear wheels, Bolts and fittings for leveling, Spindle dead center, Reduction sleeve for spindle quill, 4-positional toolholder, Reductor for tailpost quill, Trailing stop-pole, Case for accessories, Wooden pallet with polyethylene cover packaging, Users manual.
