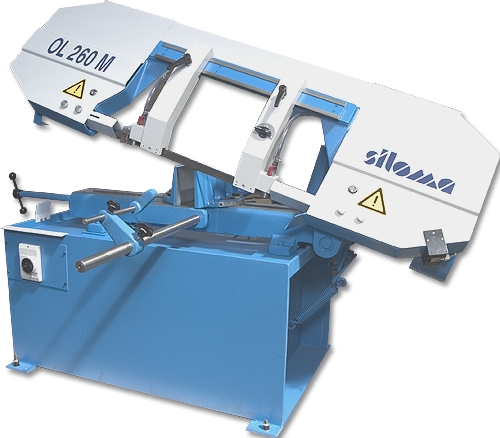

OL 260 M
Manufacturer:
Siloma Jsc
Technical specification of OL 260 M
| Technical data | Dim. | Value |
|---|---|---|
| 90o angle cut,mm | circle sec. mm | 260 |
| 90o angle cut,mm | square sec. mm | 260 |
| 90o angle cut,mm | rect. section mm | 410x200 |
| 45o angle cut,mm | circle sec. mm | 200 |
| 45o angle cut,mm | square sec. mm | 220 |
| 45o angle cut,mm | rect. section mm | 245x210 |
| Bundle cutting | - | 220x50 |
| Distance from floor to work table | mm | 740 |
| Left to right turning angle of the Bandsaw frame | deg. | 45/90/45 |
| Cutting speed | m/min. | 17 - 106 (stepless) |
| Saw blade size | mm | 3660x27x0.9 |
| Power | ||
| Motor power | kW | 1.1 |
| Coolant pump system | kW | 0.06 |
| Hydraulic motor | kW | x |
| Workpiece feed motor | kW | x |
| Bandsaw cleaning brushes motor | kW | x |
| Liquids volume | ||
| Hydraulic system | liter | 1.5 |
| Coolant system | liter | 30 |
| Size | ||
| Length | mm | 1900 |
| Width | mm | 750 |
| Height | mm | 1220 |
| Weight | kg | 360 |
Workpiece feed – manual Workpiece clamping – manual Bandsaw frame lift – manual Bandsaw tensioning - manual with tension indicator Bandsaw frame feed - controlled by hydraulics with regulator
