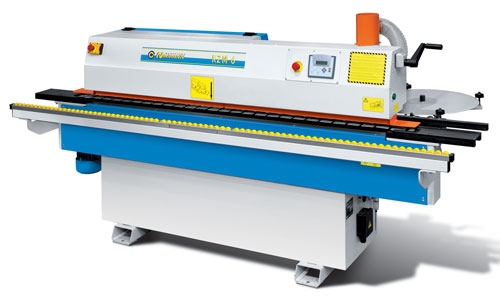

KZM 6
Manufacturer:
ZMM Stomana
Technical specification of KZM 6
|
Technical data |
dim. |
value |
|
|
|
|
|
Thickness of machined pieces |
mm |
8-45 |
|
Minimum length of machined pieces |
mm |
100 |
|
Minimum width of the piece |
mm |
100 |
|
Thickness of the edges |
mm |
0.4-3.0 |
|
Feeding speed |
m/min |
9.5 |
| Edge trim unit |
|
|
| - power of the motor |
kW |
2x0.22 |
| - RPM of the motor | Min-1 | 12 000 |
| Milling unit | ||
| - power of the motor | kW | 2x0.55 |
| - RPM of the motor | Min-1 | 12 000 |
| Supporting beam - movable with rollers | ||
| Diameters of aspiration plugs | mm | 120 |
| Compressed air presure | Bar | 6.5 |
| Total installing power | kW | 6 |
| Size | ||
| Weight | kg | 910 |
| LxBxH | mm | 3420x1220x1300 |
Standard equipment
One-side edge banding machine right execution. Edge's support - up to ø 600 mm. Teflon glue tank under melting roller. Apply the glue by means of glue roller in a direction identical as the piece direction without need of adjusting towards material's thickness. Electronic regulation of the glue temperature. Automatic lowering the temperature of the glue at recess. A guillotine for preliminary cutting of thick PVC /ABS edges max. 3 x 45. Squeezing area: two rollers – the big positive pressure; pressing with spring. Ending trim unit with one HF motor – 200Hz, 12000rpm. Circular blades Ø110 x Ø32, Z=30 teeth – 2 pieces. Unit for upper and lower milling with vertical and horizontal adjustment with two HF motors 200 Hz, 12000 rpm and milling heads ø 75mm, Z = 4; 15, R2 or R3 mm (option). Central manual adjustable upper squeezing. Transport system with chain. Pressing rollers with bearings. Supporting beam with rollers - immobile. PLC Control panel at the front side of the machine. Environment temperature: + 18° max + 35°C.
Optional equipment
Pre-milling unit – two HF motors – 1.1kW и 0.75 kW, 12 000 min-1. Diamonds trimming heads – PCD CUTTER D.60 x d20 x 48 Z 3+3
End scraper unit
Glue scraper unit
Buffing unit - two motors, two polishing discs ø125 mm, 2x0.18kW, 2800 min-1.
