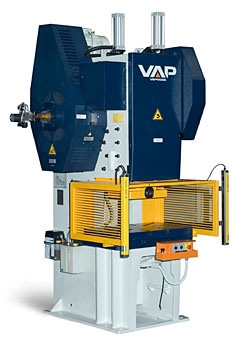

PE 63AM
Manufacturer:
VAPTECH
Technical specification of PE 63AM
| Technical data | Dim. | Value |
|---|---|---|
| Maximum effort | kN | 630 |
| Beats per minute | Min-1 | 100 |
| Motor power | kW | 5.5 |
| Variable stroke | mm | 8-100 |
| Slide adjustment | mm | 80 |
| Distance from slide to table | mm | 350 |
| C-Frame depth | mm | 280 |
| Table size – width | mm | 560 |
| Table size – length | mm | 900 |
| Table size – height | mm | 70 |
| Slide size – width | mm | 340 |
| Slide size – length | mm | 550 |
| Hole of the slider | mm | Ø50H7 |
| Size – width | mm | 1400 |
| Size – height | mm | 2840 |
| Voltage | V | 400 |
| Frequency | Hz | 50 |
| Phases | - | 3 |
| Pressure in pneumatic system | bar | 6 |
| Weight | kg | 4600 |
