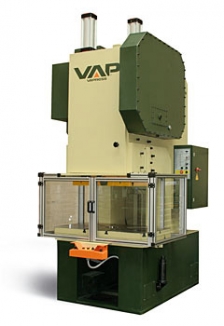

PE 200MA
Manufacturer:
VAPTECH
Technical specification of PE 200MA
| Technical data | Dim. | Value |
|---|---|---|
| Maximum effort | kN | 2000 |
| Beats per minute | n | 45 |
| Motor power | kW | 15 |
| Variable stroke | mm | 21-220 |
| Slide adjustment | mm | 110 |
| Distance from slide to table (closed) | mm | 520 |
| C-Frame depth | mm | 420 |
| Table size – width | mm | 800 |
| Table size – length | mm | 1400 |
| Slide size – width | mm | 600 |
| Slide size – length | mm | 1000 |
| Hole of the slider | mm | Ø65H7 |
| Height from floor to work table | mm | 800 |
| Size – width | mm | 1855 |
| Size – height | mm | 3785 |
| Voltage | V | 400 |
| Frequency | Hz | 50 |
| Phases | - | 3 |
| Pressure in pneumatic system | bar | 6 |
| Weight | kg | 15700 |
