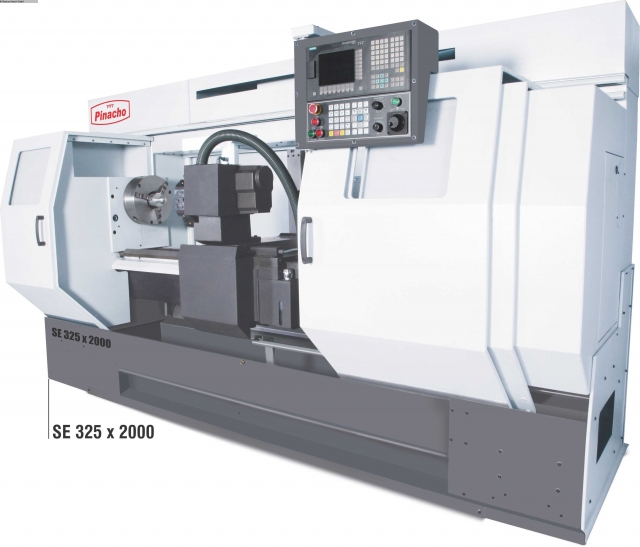

SE 325
Manufacturer:
Pinacho
| MODEL | SE 325 | |||||||
| SPECIFICATIONS SE 325 | 1000 | 1500 | 2000 | 3000 | ||||
| MM | MM | MM | MM | |||||
| Control - Siemens 808D | ||||||||
| Centre distance | 1000 | 1500 | 2000 | 3000 | ||||
| Center height | 325 | 325 | 325 | 325 | ||||
| Swing over bed | 652 | 652 | 652 | 652 | ||||
| Swing over carriage | 595 | 595 | 595 | 595 | ||||
| Swing over cross slide | 440 | 440 | 440 | 440 | ||||
| Cross slide travel | 300 | 300 | 300 | 300 | ||||
| Bed width | 350 | 350 | 350 | 350 | ||||
| Headstock Main spindle bore | 80 | 155 | 80 | 155 | 80 | 155 | 80 | 155 |
| Main spindle nose / Camlock | A2 - 8 / 8 | A2 - 8 / 8 | A2 - 8 / 8 | A2 - 8 / 8 | ||||
| Main spindle Morse taper (MT) | 5 | 5 | 5 | 5 | ||||
| No. of Speed ranges Speed range (3 rpm) | 0 - 1700 | 0 - 1700 | 0 - 1700 | 0 - 1700 | ||||
| Working feed Z,X (mm/min) | 0 - 5000 | 0 - 5000 | 0 - 5000 | 0 - 5000 | ||||
| Rapid traverse X (mm/min) | 8 | 8 | 8 | 8 | ||||
| Rapid traverse Z(mm/min) | 8 | 8 | 8 | 8 | ||||
| Z - axis ball screw ø | 40/10 | 40/10 | 40/10 | 40/10 | ||||
| X - axis ball screw ø | 20.май | 20.май | 20.май | 20.май | ||||
| Maximum tool dimensions | 25 X 25 | 25 X 25 | 25 X 25 | 25 X 25 | ||||
| Tail stock barrel diameter | 95 | 95 | 95 | 95 | ||||
| Tail stock barrel travel | 220 | 220 | 220 | 220 | ||||
| Tail stock morse taper (MT) | 5 | 5 | 5 | 5 | ||||
| Fixed Steady capacity | 185 | 185 | 185 | 185 | ||||
| Follow Rest capacity | 130 | 130 | 130 | 130 | ||||
| Main Motor Power (Kw) | 7.май | 7.май | 7.май | 7.май | ||||
| Pump Motor Power (Kw) | 0.37 | 0.37 | 0.37 | 0.37 | ||||
| Capacity of coolant tank (lts) | 81 | 111 | 151 | 201 | ||||
| Overall Dimesions (mm) Length | 2800 | 3325 | 3850 | 4750 | ||||
| Width | 1350 | 1350 | 1450 | 1450 | ||||
| Height | 1810 | 1810 | 1875 | 1875 | ||||
| Weight (Kg) | 1850 | 2200 | 2600 | 3200 | ||||
| Acceptance Accuracy | DIN 8605 | DIN 8605 | DIN 8605 | DIN 8605 | ||||
