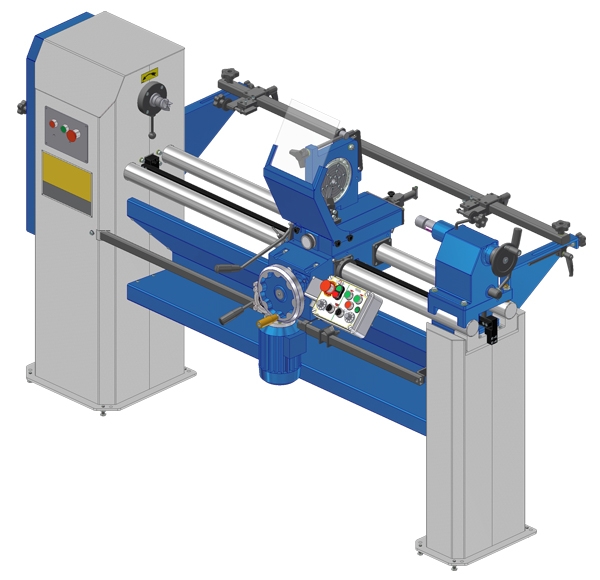

CL 1200 M
Manufacturer:
ZMM Stomana
Technical specification of CL 1200 M
|
Technical data |
dim. |
value |
|
|
|
|
|
Height of centers |
mm |
1100 |
|
Centers height under guides |
mm |
215 |
|
Maximal turning length |
mm |
1200 |
|
Maximal turning diameter |
||
|
- over guides |
mm |
450 |
|
- over carriage |
mm |
215 |
|
- on copying |
mm |
215 |
|
Copying device |
||
|
- depth, max. |
mm |
60 |
|
- length, max. |
mm |
1200 |
|
Pattern |
||
| - diameter, max. | mm | 150 |
| - length, max. | mm | 1200 |
|
Spindle |
||
|
Spindle outer thread |
mm |
M33x3.5 |
|
Spindle taper |
MK |
2 |
|
Spindle speed |
Min-1 |
500 / 1000 / 2000 / 2800 |
|
Tailstock |
||
|
Tailstock travel |
mm |
140 |
|
Tailstock taper |
MK |
2 |
|
Motor |
||
|
Main motor power |
kW |
1.1 (1.5) |
|
Size |
||
|
Length |
mm |
2105 |
| Height | mm | 1225 |
| Width | mm | 1000 |
| Required space | mm | 2500/1800 |
| Weight | ||
| Net weight | kg | 395 |
Standard equipment
The body is made of welded steel sheets and chrome plated round ways. Tailstock with live center. Longitudinal and perpendicular carriage and a device for template copying. Accessories: traveling rest, steady rest, chuck ø 16, head stock drive centre, running center ø 20, running center ø 40, leading cogwheel center ø 20, leading cogwheel center ø 40, contrary taper ø 40, omni directional knife ø 200, copying knife 16x16, manual support, protective screen, secondary level, lever for knock- out, milling- dividing attachment.
Optional equipment
Travelling rest with shavings
