FUV301

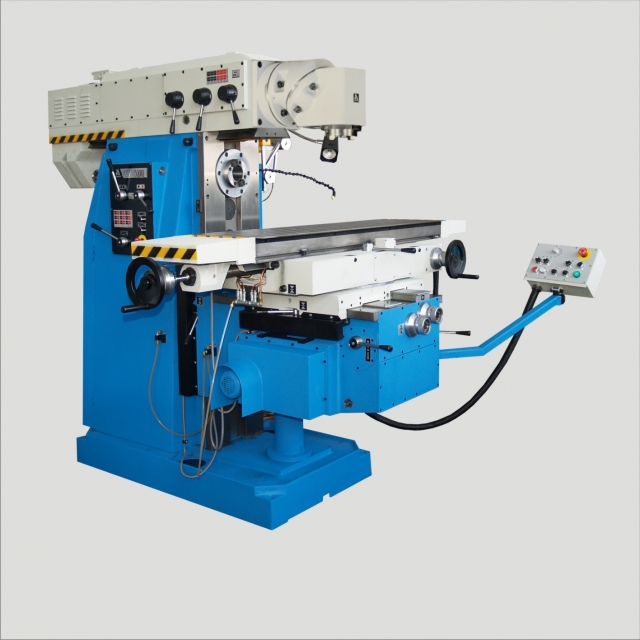

Models FUV machines allow you to perform all types of milling operations. These models have horizontal and vertical spindles that can work simultaneously performing manufacturing complex parts while reducing the processing time.
Manufacturer:
Arsenal JSCo
Technical specification of FUV301
|
Technical data |
dim. |
value |
|
|
|
|
|
Work table size |
mm |
300x1250 |
|
Distance from vertical spindle's axis to table's work surface min/max |
mm |
170/580 |
|
Distance from horizontal spindle's axis to table's work surface max |
|
440 |
|
Т-slots |
pcs |
3 |
|
Width of Т-slots |
mm |
14 |
|
Distance between Т-shaped grooves |
mm |
50 |
|
Table swivel - left and right |
deg |
45 |
|
Longitudinal table travel - manual feed |
mm |
950 |
|
Longitudinal table travel |
mm |
930 |
|
Cross table travel - manual feed |
mm |
320 |
|
Cross table travel |
mm |
300 |
|
Vertical table travel - manual feed |
mm |
410 |
|
Vertical table travel |
mm |
390 |
|
Table feeds |
|
stepless |
|
Continuous feed |
||
|
Table feed rate, X,Y/Z |
mm/min |
10-1000 / 4-416 |
|
Table rapid traverse X,Y /Z |
mm/min |
2500 / 1040 |
|
Vertical spindle |
||
|
Vercital spindle nose taper |
ISO |
40 |
|
Number of vertical spindle speeds |
pcs |
12 |
|
Vertical spindle speed range |
Min-1 |
45-2000 |
|
Horizontal spindle |
||
|
Horizontal spindle nose taper |
ISO |
40 |
|
Number of horizontal spindle speeds |
pcs |
18 |
|
Horizontal spindle speed range |
Min-1 |
40-2000 |
|
Horizontal spindle speed range, special version |
Min-1 |
50-2500 |
|
Milling head |
||
|
Vertical milling head rotation |
deg |
360 |
|
Milling head rotation around 2 axes (option) |
deg |
360 |
|
Drive |
||
|
Vertical spindle motor power |
kW |
4 |
|
Horizontal spindle motor power |
kW |
5.5 |
|
Feed motor power |
kW |
1.5 |
|
Size |
||
|
Weight |
kg |
2625 |
|
Lenght (А) |
mm |
2500 |
|
Height (B) |
mm |
1856 |
|
Machine lenght with arm moved forward (C) |
mm |
2620 |
|
(D) |
|
1145 |
|
Width (E) |
mm |
2870 |
Standard equipment
Vertical milling head, Automatic lubricating system, Cooling system, Workarea lighting, Electrical equipment 400V 50Hz, Set of tools, Workzone protection
