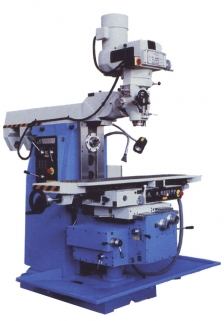

FPU 401
Manufacturer:
Arsenal JSCo
Technical specification of FPU 401
|
Technical data |
dim. |
value |
|
|
|
|
|
Work table size |
mm |
400x1600 |
|
Distance from vertical spindle's axis to table's work surface max |
mm |
650 |
|
Distance from horizontal spindle's axis to table's work surface max |
|
490 |
|
Т-slots |
pcs |
5 |
|
Width of Т-slots |
mm |
18 |
|
Distance between Т-shaped grooves |
mm |
80 |
|
Table swivel - left and right |
deg |
45 |
|
Longitudinal table travel - manual feed |
mm |
1250 |
|
Longitudinal table travel |
mm |
1230 |
|
Cross table travel - manual feed |
mm |
360 |
|
Cross table travel |
mm |
340 |
|
Vertical table travel - manual feed |
mm |
460 |
|
Vertical table travel |
mm |
440 |
|
Table feeds |
|
stepless |
|
Tailstock barrel travel |
mm |
127 |
|
Feed |
||
|
Feed quantity |
pcs |
18 |
|
Feed rate, standart work X,Y /Z |
mm/min |
12.5-630 / 5-262 |
|
Feed rate, special work 1 X,Y /Z |
mm/min |
16-800 / 7-334 |
|
Feed rate, special work 2 X,Y /Z |
mm/min |
20-1000 / 8-415 |
|
Feed rate, special work 3 X,Y /Z |
mm/min |
40-1000 / 16-416 (continuous feed) |
|
Feed rate, special work 4 X,Y /Z |
mm/min |
16-1000 / 7-416 (continuous feed) |
|
Table rapid traverse X,Y /Z |
mm/min |
2500 / 1040 |
|
Tailstock feed |
mm/min |
0.04 / 0.08 / 0.15 |
|
Vertical spindle |
||
|
Vercital spindle nose taper |
ISO |
50 |
|
Number of vertical spindle speeds |
pcs |
stepless (CVT) |
|
Vertical spindle speed range |
Min-1 |
70-3600 |
|
Horizontal spindle |
||
|
Horizontal spindle nose taper |
ISO |
50 |
|
Number of horizontal spindle speeds |
pcs |
18 |
|
Horizontal spindle speed range |
Min-1 |
40-2000 |
|
Horizontal spindle speed range, special version |
Min-1 |
50-2500 |
|
Milling head |
||
|
Milling head swivel right/left |
deg |
90 |
|
Milling head tilt front/back |
deg |
45 |
|
Drive |
||
|
Vertical spindle motor power |
kW |
3.75 |
|
Horizontal spindle motor power |
kW |
7.5 |
|
Feed motor power |
kW |
2.2 |
|
Size |
||
|
Weight |
kg |
3075 |
|
Lenght (А) |
mm |
2620 |
|
Height (B) |
mm |
2345 |
|
Machine lenght with arm moved forward (C) |
mm |
1920 |
|
(D) |
|
1220 |
|
Width (E) |
mm |
3590 |
Standard equipment
Milling head, Automatic lubricating system, Cooling system, Workarea lighting, Device for regulating the longitudinal backlash of the screw, Electrical equipment 400V 50Hz, Set of tools, Workzone protection
