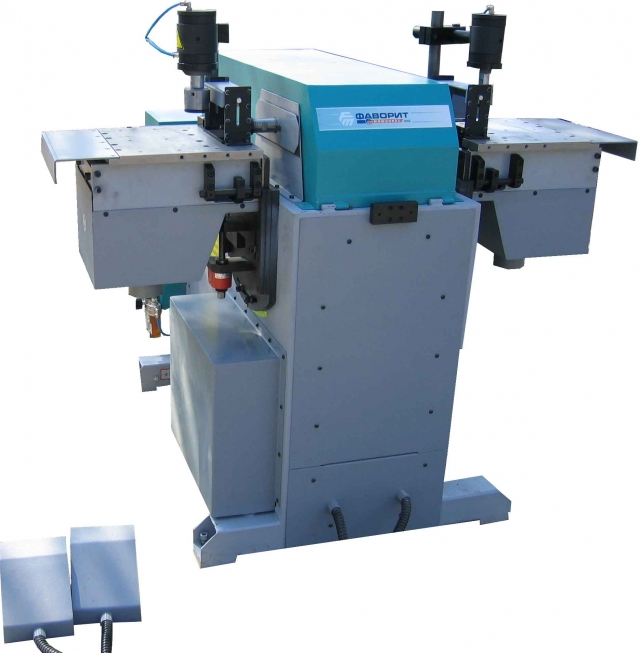

FK 200 OD Twin table slot mortiser
FK200 OD Slot Mortiser is designed to produce accurate slots in chair, and other type of furniture and general solid wood components, using a combined oscillating spindle and worktable feed action.
Manufacturer:
Favorit Machinex
Technical specification of FK 200 OD
| Technical data | Dim. | Value |
|---|---|---|
| Work Table width | mm | 200 |
| Maximal slot length | mm | 100 |
| Maximal slot width | mm | 30 |
| Maximal slot depth | mm | 60 |
| Frequency oscillation | 60 - 250 | |
| Table inclination | deg | 15 |
| Spindle speed | min-1 | 8000 |
| Slots per hour productivity | pcs. | 500 - 800 slots |
| Dust suction ports diameter - 2pcs. | mm | 80 |
| Motor | ||
| Spindle motor power | KW | 2.2 |
| Oscillation motor power | KW | 0.75 |
| Total unit power | KW | 2.95 |
| Size | ||
| LxWxH | mm | 950x1350x1270 |
| Weight | ||
| Net weight | kg | 650 |
