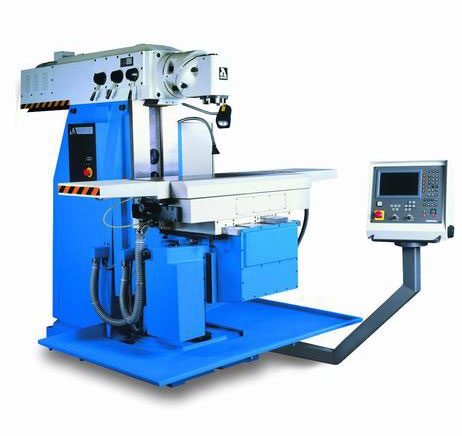

FV 361 03
Manufacturer:
Arsenal JSCo
Technical specification of FV 361 03
| Technical data | Dim. | Value |
|---|---|---|
| Work table size | mm | 360x1000 |
| Distance from spindle`s axis to table`s work surface, max | mm | 567 |
| T-slots | pcs. | 5 |
| Width of T-slots | mm | 18 |
| Distance between T-shaped grooves | mm | 63 |
| Longitudinal travel of table | mm | 750 |
| Cross table travel | mm | 340 |
| Vertical table travel | mm | 440 |
| Feed | ||
| Feed range, X, Y / Z | mm/min | 2-10000/ 2-6000 |
| Table rapid traverse X,Y /Z | m/min. | 10/6 |
| Spindle | ||
| Spindle nose taper | ISO | 50 |
| Number of spindle speeds | pcs. | 12 |
| Range of motor revolutions | rpm | 45-2000 |
| Milling head | ||
| Milling head rotation - around 2 axes (option) | deg. | 360 |
| Drive | ||
| Motor power | kW | 4 |
| Size | ||
| Weight | kg | 3100 |
| Length (A) | mm | 3480 |
| Height (B) | mm | 2000 |
| Machine length with arm moved forward ( C) | mm | 2760 |
| D | mm | 1210 |
| Width ( E) | mm | 2650 |
Standard equipment
CNC System Heidenhain 310, Milling head, Automatic lubricating system, Cooling system, Workarea lighting, Workpiece clamping – hydraulical, Precision ball screws on three axes, Electrical equipment 400V 50Hz, Set of tools, Workzone protection
